Automatic printing line for odd-form components

AUREL is leader in full automatic screen printing line for odd-form substrates. The printer is the standard Mod. C1010R with rotating table four positions high accuracy.

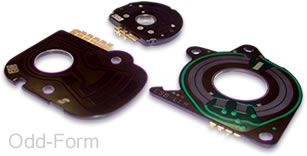

odd form components


– Automotive sensors for throttle position, steering angle, pedal position, light control, suspension and exhaust;
– Components;
– Pressure sensors;
– Standard substrate up to 4″x4″;

Line includes

  • Automatic loading from cassette or stack
  • Inspection station
  • Substrate collocator
  • Dryer/Curing Mod. A206 with stainless steel meshed conveyor belt or teflon fiberglass
  • Unloading from dryer to cassette or stack (this system use vision to recognize the substrate over the conveyor at the furnace exit)
