F1-1200-6 <1%RH Dry Cabinet/ 1250L Ultra Low Dry Cabinet <1%RH

F1-1200-6 <1%RH Dry Cabinet

1250L Ultra Low Dry Cabinet <1%RH


F1 ultra low humidity dry cabinet is specially designed for moisture sensitive devices(MSD) of level 4,5,5A,or 6. The MSD concept is defined by IPC association who published regulation of JEDEC JSTD-033C. The F1 dry cabinet maintains internal humidity level 1%RH and is ideal for moisture-proof and anti-oxidation storage applications, avoiding corrosion, mold and deterioration for stored component parts or material such as precision metal parts, miniature devices, pharmaceutical substance, biotic specimens, battery, crystal, IC package module, optical lens, IC package, MSD, MBB, PCB or scientific precision instruments…etc.

Customized dry box service are also available like Tape feeder cabinet and Tape reel storage cabinet.

Slide drawer option: Slide-Drawers

Dr. Storage F1

High Precision LED Display Control Panel

◎Simultaneously display temperature & humidity values
◎RS-232 port for data collection
◎Display Precision:±2%RH;±1℃ (at <10%RH, 25℃ )
◎Built-in flash & buzzer alarm

Colorful Storage Bins(Optional)

◎Inside bin: store and retrieve important items quickly to shorten the door opening time.
◎Outside bin: put in ISO documents such as work sheet or quality instructions for better QA management.
◎Maximum loading of bin: 5Kgs

Excellent Airtight Cabinet Body

◎Reinforced glass window
◎Antistatic 3” wheels
◎Antistatic colorful window frame
◎Adjustable levelers
◎Unique steel structure design for excellent air tightness

Reliable Dehumidifier made of PPS material

◎PPS material: 230°C heat tolerance to avoid any deforming or melting of dehumidifiers
◎Modular design for easy maintenance & painless upgrade
◎Silent , drip less, frostless operation

Adjustable Shelves

◎Shelves can be flexibly installed in any position.

Data Logger GT05Colorful Storage BinsNitrogen Flow MeterFlash Alarm TowerInduction LightNitrogen Filling ModuleSlide Drawers
ModelF1-1200-6 <1%RH ±1%RH Dry CabinetF1-600, <1%RH ±1%RH Dry Cabinet
Product Image
Link (to):F1-1200-6F1-600
Temperature & Humidity range<1%RH ±1%RH<1%RH ±1%RH
Precision±2%RH;±1℃ (at <10%RH, 25℃ )±2%RH;±1℃ (at <10%RH, 25℃ )

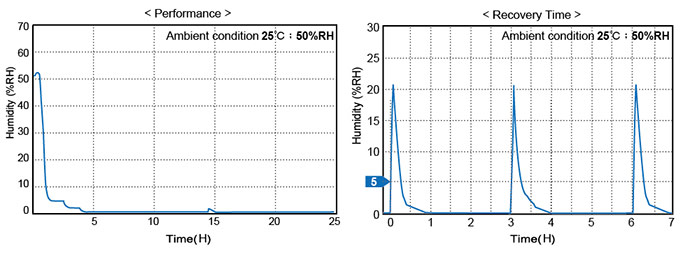

Recovery time (Open door 30 secs)Open door 30 seconds and close, 15 mins recovery time to
<5%RH, 30 mins recovery time to <2%RH
Open door 30 seconds and close, 15 mins recovery time to
<5%RH, 20 mins recovery time to <2%RH
External dimensions (mm)W1200*D672*H1820W600*D672*H1820
Internal dimensions (mm)W1198*D644*H1618W598*D644*H1618
Shelf dimensions (mm)W1155*D530*H20W555*D530*H20
No. of Shelf55
Power consumptionAve. 135Wh
Max. 425W
Ave. 83Wh
Max. 285W
