Fan Out Wafer Level Packaging
Wafer Level Packaging (WLP) technology uses a wafer reconstruction process, where Known Good Die (KGD) and other types of devices, packages or components are placed side-by-side and embedded with epoxy mold compound. This is followed by a thin-film processing, repassivation and metallization on one or both sides of the wafer to fan out interconnections from original die pads to external pad locations.
The KGD are mounted face down on a carrier with sticky tape. Molding compound is added then baked to set the compound. The carrier is then turned right side up and the carrier and sticky tape are removed.

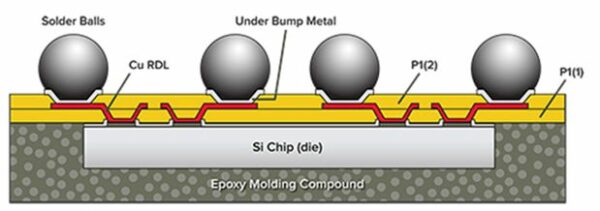

Fan-out wafer level packaging (FOWLP) uses mold compound to embed various functional dies.
Photo Source: Beth Keser
YES polyimide cure ovens offer a vacuum thermal cure that is a critical step for FOWLP and offers:
- Gentle vacuum process
- Reduction in particles
- Shorter process time
- Less Nitrogen used
- No discoloration
- No trapped solvent
- No outgassing at metallization
- Increased I/O density
- Smaller form factor
- Multiple die in a low-profile package
- Excellent electrical and thermal performance
- Excellent high temperature warpage performance
- Multi-layer RDL with FOWLP
- Improved board-level reliability
As dielectric materials have evolved to meet the challenges of WLP, the need for a perfect cure became a critical step.
Needed results for a proper cure:
- Excellent thermal, electrical and mechanical properties
- Reliable multi-level interconnections
- Proper cross-linking
- No stress
- No cracking or lifting
- Controlled glass transition stage
- Complete evaporation of effluents
- Highest yields
A proper cure time and temperature ramp rate IMPROVES STABILITY!
